Hydro-Dyne Engineering Inc.

Hydro-Dyne Engineering Inc. draws on 40+ years of experience and is a leading manufacturer of exceptional quality screening and grit removal equipment for municipal and industrial water and wastewater facilities.

Hydro-Dyne’s full line of water and wastewater screens, screening handling and grit removal equipment provide a superior level of functionality and reliability – reducing maintenance costs and improving the performance of downstream equipment. Their stainless steel equipment is well-suited for the protection of water and wastewater treatment plants and industrial facilities.

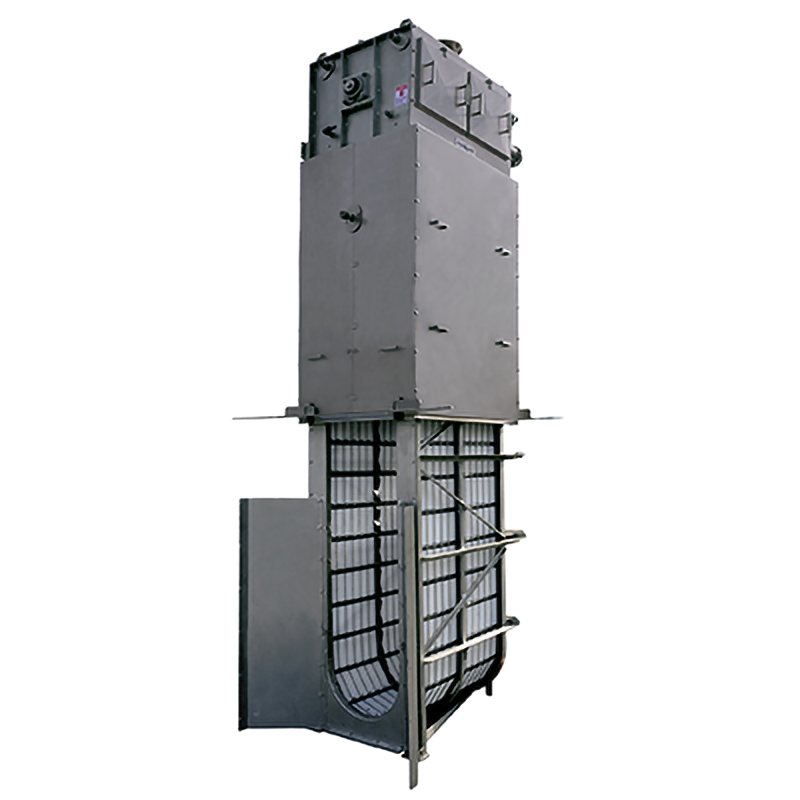

Centre Flow Band Screen
Hydro-Dyne’s Great White Centre/Dual Flow Continuous Band Screen is designed to handle low-to-high flows and has been independently certified to have one of the highest screenings capture ratio of all band screens on the market.¹ The dual spray wash, patented grid design, proprietary sealing system and UHMWPE guide links make this an exceptional product for the filtering and offloading of water and wastewater screenings.

Very low headlosses and extremely strong, well-reinforced grids make these centre flow (centre entrance, side exit) and dual flow (side entrance, rear exit) screens suitable for several applications in municipal and industrial water and wastewater solutions.
¹UK Water Industry Research in National Screen Evaluation Facility Inlet Screen Evaluation Comparative Report (1999—2015).

Features

This high capacity, continuous band fine screen has low headloss and zero carryover. It provides excellent protection to downstream processes such as membrane technology. The proprietary design easily captures and offloads screenings including rags and stringy material. Design features include:
- Grid opening range: 0.5—25 mm
- Flow capacity: 5—5,500+ L/s
- No submerged sprockets, bushings or bearings
- Heavy-duty reinforced structural supports for unlimited differential
- Rear bypass gate
- Proprietary grid-to-frame and panel-to-panel sealing system held to <0.5 mm
- Proprietary low friction UHMWPE guide links that reduce maintenance and operations costs
- Dual spray wash unloading
- All maintenance is above channel.
This screen has an excellent screenings capture ratio that has been independently certified as highest screening capture ratio of 45 screens.
- 93.25% with 2 mm grid
- 84% with 6 mm grid.
This screen is available in two models:
- Centre flow (centre entrance/side exit)
- Dual flow (side entrance/rear exit).
Brochure Contact Us

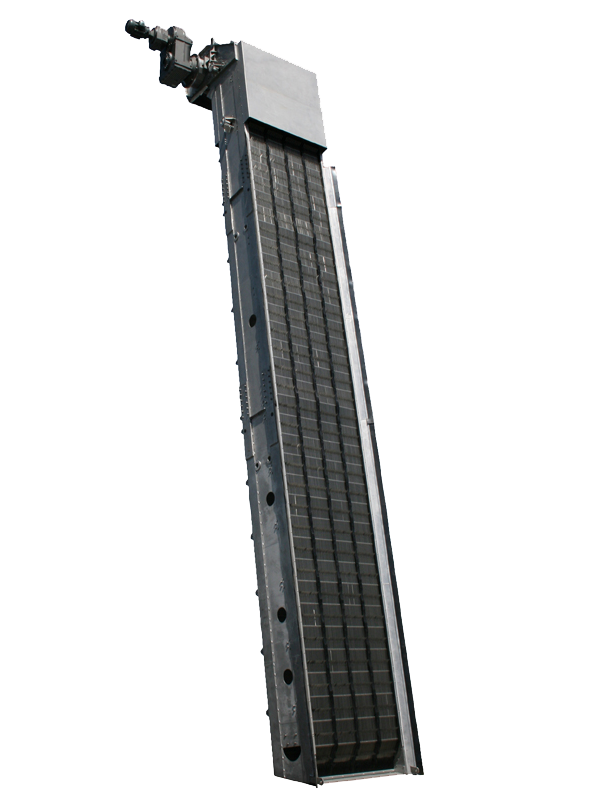

Through Flow Band Screen
Hydro-Dyne’s Bull Shark Through Flow Band Screen is ideal in a wide range of environments and is available in a variety of grid types, opening sizes and models. The screen’s extremely strong stainless steel grid reduces headlosses to well below industry standards. All stainless steel construction and UHMWPE wear surfaces provide years of trouble-free operation.
Features

This heavy duty, high capacity continuous through flow fine or coarse band screen is ideal for large solids removal. This extremely reliable and versatile screen series is available in different models to suit each specific purpose: Standard, Heavy Duty, Super Duty, Front Discharge and Low Flow. Features include:
- Grid opening range: 0.5—75 mm
- Flow capacity: 5—7,000+ L/s
- Unlimited support against deflection
- Coarse or fine screening
- Patented grid design with interchangeable opening types
- Continuous belt design that eliminates potential for jamming
- No submerged sprockets, bushings or bearings
- Stainless steel links and supported panels
- Directly retrofits into existing channels and can pivot for bypass
- All T304 or T316 stainless steel fabrication
- Easy installation and maintenance.
Brochure Contact Us

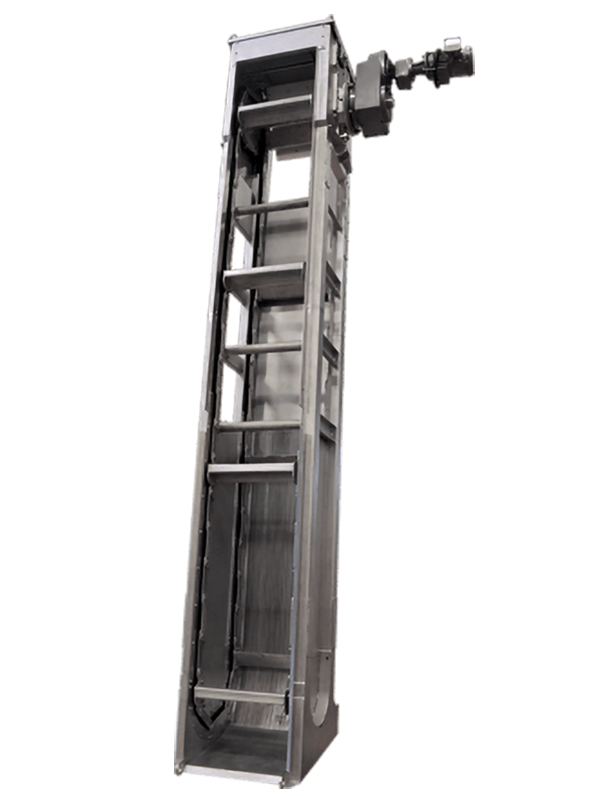

Tiger Shark Multi-Rake Bar Screen
Hydro-Dyne’s Tiger Shark Multi-Rake Bar Screen has been designed for large particle removal and efficiently captures a wide variety of debris. It’s heavy-duty stainless steel rakes continuously clean the bar rack with grid openings from 5—300 mm. Minimal friction is achieved using UHMWPE guide links — reducing wear and maintenance. This screen combines reliability with efficient operation.
Features

This high lift, low maintenance, coarse screen has no submerged sprockets, bearings or bushings enabling easy installation and maintenance. This screen can be retrofitted into existing channels. Features include:
- Grid opening range: 5—300 mm
- Particle removal up to 450 mm
- Flow capacity: 44—6,570+ L/s
- Fabrication materials: T304, T316, super duplex, high nickel stainless steels (solid stainless steel sprockets and drive shaft)
- Proprietary low friction UHMWPE guide links
- Patented sealing system (tight tolerance down to 0.5 mm)
- Direct drive (no chains or sprockets)
- Fractional hp and kW requirements
- Jam protection with auto-reverse and clear
- Unloading does not require spray or wash brushes
- Adjusts to tension grid to extend wear life of screen.
Brochure Contact Us

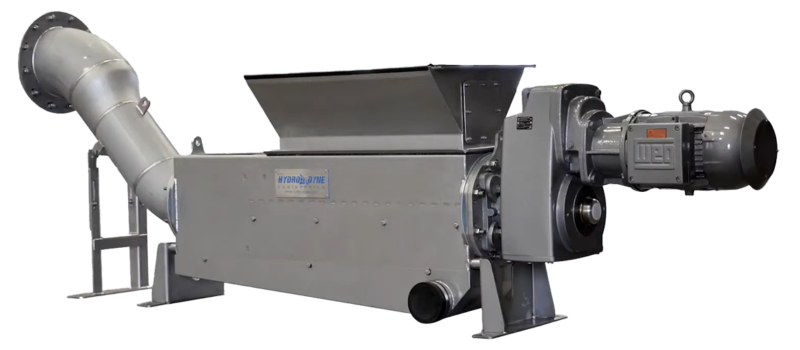

Whitetip Shark Washing Compactor
Hydro-Dyne’s Whitetip Shark Washing Compactors are robust, high performing and efficient. These compactors are available in different configurations, varying in type of flow, solids collected and washing processes. Standard model designs include:
- Whitetip Shark Washing Compactor — this compactor provides drainage, washing and compaction.
- Whitetip Shark Washing Compactor with enhanced dewatering — this compactor provides drainage, washing, rinse, dewatering and compaction.
- Whitetip Shark Washing Compactor with enhanced wash/dewatering — this compactor provides drainage, washing, enhanced washing, rinse, dewatering and compaction.
Features

Features of these compactors include:
- Designed to process screenings from any screen, launder/sluice or conveyor to any waste disposal drop point
- Weight reduction up to 80%
- Screening volume reduction to up to 85%
- Organic removal up to 95%
- Dewatered screenings dry solids content up to 40%
- Screenings meet USEPA 9095 landfill requirements
- T304 or T316 stainless steel fabrication
- Heavy duty AR400 auger for long wear life and ability to crush large objects
- Standard screw diameters.
For more information about each of the models download the brochure by clicking the link below.
Brochure Contact Us

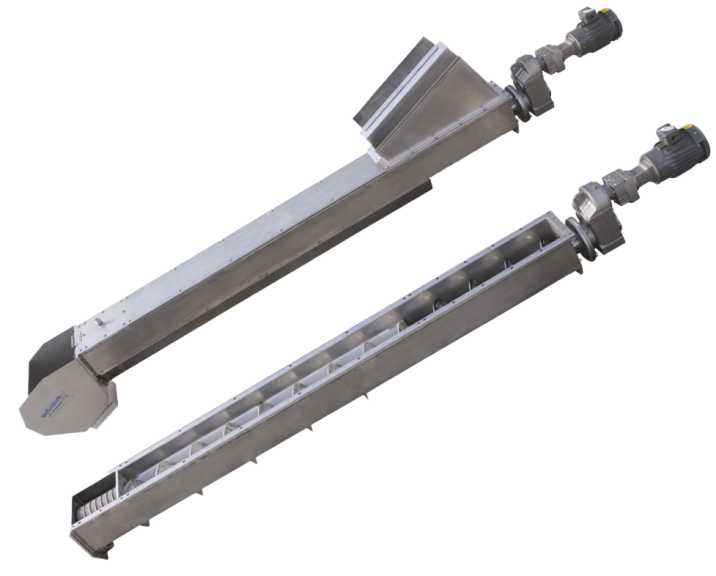

Screw Conveyor/Sluice Systems
Hydro-Dyne’s Spinner Shark Screw Conveyor and Sluice Systems provide a variety of choices for transporting solids. Both systems and are totally enclosed to ensure safety, odour control and provide aesthetics.
Features

Hydro-Dyne’s Spinner Shark Screw Conveyor is a simple and effective means of dewatering and transporting solids. It is available with hydraulic and electric drives, and single or double bearings. This conveyor comprises a stainless steel flight and has UHMWPE wear surfaces to reduce friction and repair. This conveyor is available in two models:
- Shafted flight model with the ability to add compaction, and with precision lasered, wedge wire or perforated plate dewatering zones
- Shaftless flight model with increased throughput and the ability to convey larger solids.
Hydro-Dyne’s Spinner Shark Sluice System is a simple and efficient method for transporting screenings. With no mechanical equipment this low-maintenance model:
- Is available in different configurations
- Has the option of manual or actuated sluice gates
- Has T304 or T316 stainless steel fabrication.
Brochure Contact Us

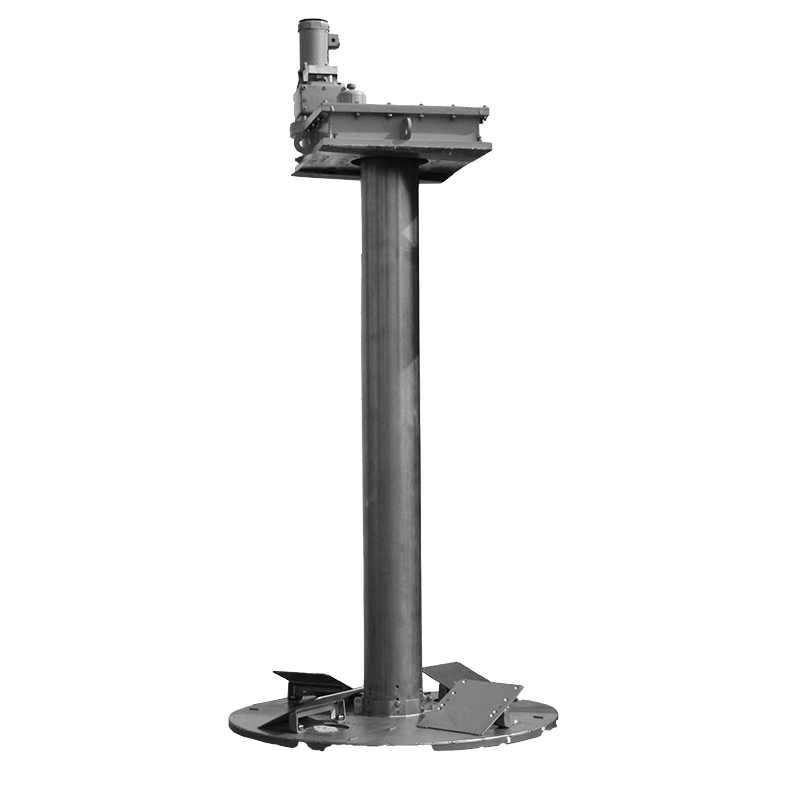

Grit Trap
Hydro-Dyne’s Sand Shark Grit Trap is a simple, effective, efficient and economical solution to your grit removal needs. In-ground and above-grade models are available from flows up to 3,066 L/s per unit. Hydro-Dyne’s vortex grit removal system includes a geared drive head and rotating flat plate impeller inside the grit collector. The Sand Shark Grit Trap is available in two models:
- Stirred Vortex Propeller (SVP) — Grit removal capacity of 95% of 200 micron (2.65 g/cc) particles at average flow
- Stirred Vortex Impeller (SVI) — Grit removal capacity of 95% of 300 micron (2.65 g/cc) particles at average flow.
Features

Hydro-Dyne’s vortex-style grit trap system allows continuous operation under variable flows with standard grit trap chambers managing flows up to 3,066 L/s.
- 270° and 360° grit trap designs
- Durable 304/316 stainless steel in concrete or stainless tank
- Rotating propeller/impeller maximises grit capture in the storage hopper
- Low headloss
- Low energy and maintenance costs.
Brochure Contact Us

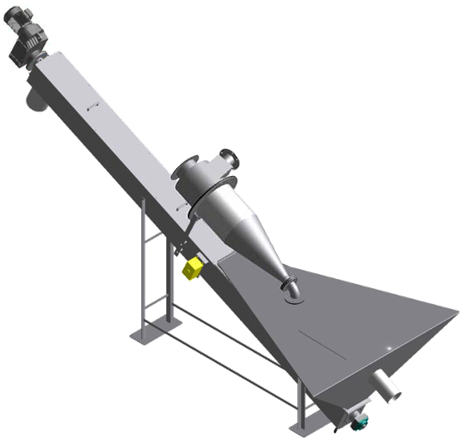

Grit Classifier and Hydro-Cyclone
Hydro-Dyne’s grit dewatering equipment, the Sand Shark Grit Classifier and Sand Shark Hydro-Cyclone have been specifically designed to dewater grit slurry from wastewater. This grit removal and dewatering technology is compact, flexible, has a small footprint and can be retrofitted and customised to site conditions.
Features

Mounted directly over the Sand Shark Grit Classifier inlet hopper, the Sand Shark Hydro-Cyclone has replaceable wear liner and no moving parts. This grit removal and dewatering technology features:
- High capture efficiency — lamella trays and centrifugal force handle peak grit events
- Grit removal capacity of 95% of 75 micron particles (2.65 g/cc) at average flow
- Durable 304 or 316 stainless steel.
- Lower bearing fully protected against ingress of abrasive particles
- Dewatered grit is deposited directly into the receptacle.
Brochure Contact Us

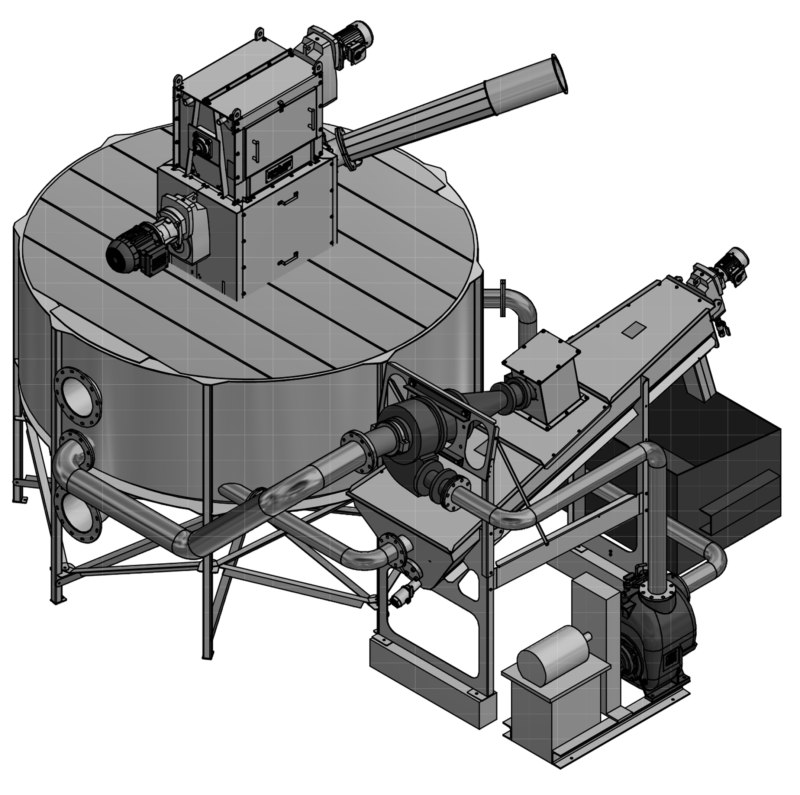

Reef Package Headworks
Hydro-Dyne’s Reef Packaged Headworks has been specifically designed for high screening and grit capture in a compact footprint. With flow rates of up to 110 L/s this unit has a stainless steel construction for protection from biogenic corrosion.
Features

The Reef Packaged Headworks comprises the Great White Centre Flow Band Screen, Whitetip Shark Washing Compactor, Sand Shark Grit Tanks and the Sand Shark Grit Classifier. Features include:
- Centre flow screen with superior solids capture with a design that provides the best hydraulic profile
- Screening and grit removal combined into one tank
- Smallest footprint possible with a single tank design
- Compaction utilising a dedicated motor for superior solids washing and dewatering
- Simplified grit tank design for ease of maintenance
- Simplified grit tank design utilises gravity only
- Centre inlet to the grit tank to prevent short circuiting
- Centre inlet baffled by the screen to provide low inlet velocity
- Configuration that is optimum for grit settling
- Radial grit tank weir design for lowest possible exit velocity.
Brochure Contact Us

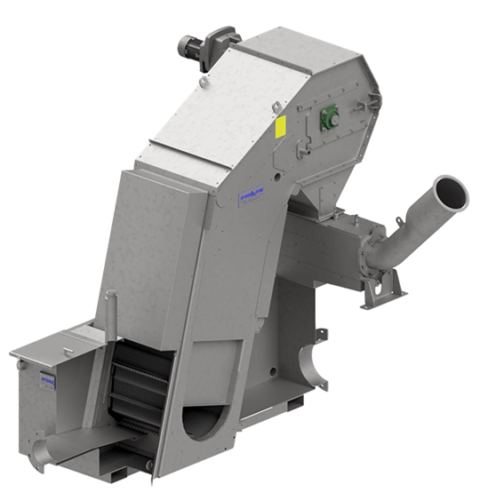

Septage Receiving Station
Hydro-Dyne’s self-contained, efficient and reliable Dusky Shark Septage Receiving Station provides high volume screenings reduction. This unit captures a wide variety of materials including solids, fibres, inorganics and grease trap material. It is ideal for wastewater screening where fine screening with low headloss is required.
Features

The Dusky Shark Septage Receiving Station features include:
- Through-flow screen
- Compact footprint
- Robust construction and low maintenance
- Heavy duty stainless steel
- Continuous belt design offloaded with water
- Pressurised spray to wash the grid and prohibit carryover
- No submerged sprockets, bearings or bushings
- Can accommodate low to high flow rates
- Wide range of opening sizes (3—9 mm) and options including stainless steel laced links and perforated panels as well as UHMWPE perforated panels
- Sealing system with tight tolerance down to 0.5 mm in all locations on the screen
- Electric or hydraulic direct drive available
- Fully enclosed for safety, odour control and aesthetics.
Brochure Contact Us

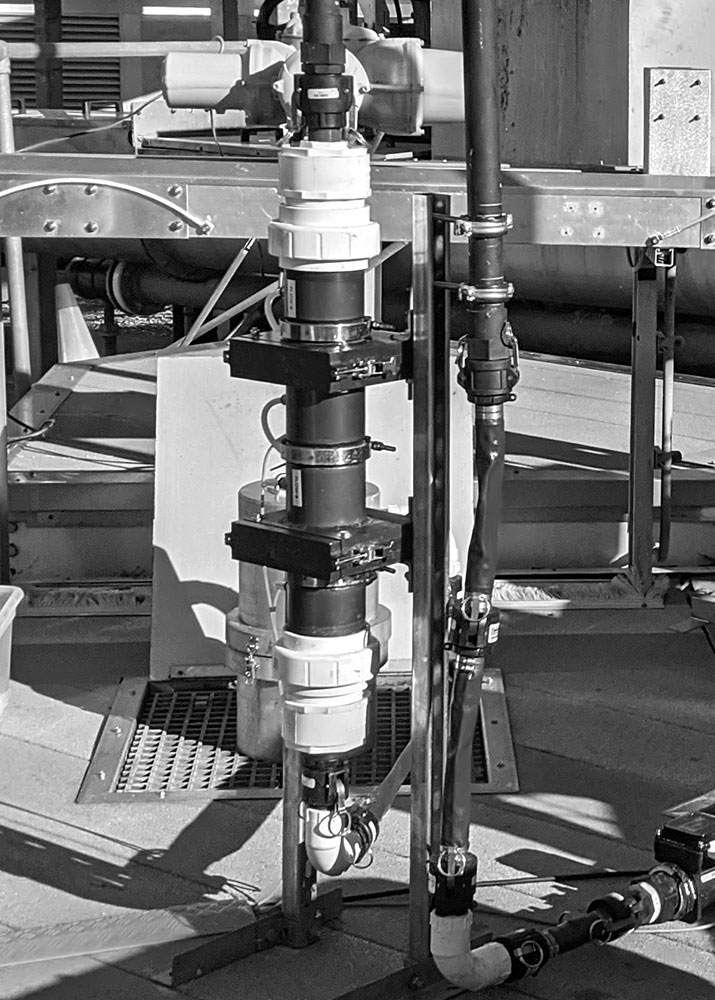

Hammerhead On-site Screen Sizing (HOSS) Testing
Together with our partner, Hydro-Dyne Engineering, Process Wastewater offers on-site screen testing.

While the wastewater industry has evolved, the methods and formulas for headworks design and equipment sizing have remained constant. As a result, treatment plants and collection systems continue to deal with ongoing and unnecessary problems including equipment failure, and a significant reduction in overall system efficiency and performance.

On-site screen sizing provides significant information that can influence the way treatment plants design their headworks structures.

Hydro-Dyne’s Hammerhead On-site Screen Sizing (HOSS) equipment utilises an array of technologies to test and analyse a treatment plant’s unique wastewater environment, resulting in informed decisions about headworks structure design and ultimately reducing costs and improving performance and efficiency.

To discuss how this will benefit your business contact us now.
Features

This technology:
- Enables treatment plants to better understand the unique characteristics of their wastewater flow
- Provides site-specific intelligence to design the most efficient and effective headworks structures
- Significant reduction in many of the unknown variables currently utilised in equipment design
- More accurate hydraulic predictions
- Proper design and sizing of screenings handling units
- Decreased capital costs attributed to oversized equipment and channels
- Improved protection and extended life of downstream plant technologies
- Reduced maintenance of equipment throughout the plant and increased headworks equipment life
- Defined dual stage screening.
Brochure Contact Us
