The Haigh Engineering Company is based in Ross-on-Wye, Herefordshire, UK. With over 60 years’ experience, Haigh is a well-established specialist manufacturer of screens, macerators and compactors. Haigh have developed a strong reputation for packaged screenings handling plant and inlet works systems with thousands of installations worldwide.

Haigh are committed to driving innovation in their areas of expertise; minimising the effects of operations and products on the environment; and delivering solutions of the very highest quality, safety and technical performance.

ACE Band Screen
The Haigh Engineering Company’s centre flow ACE Band Screen has an exceptional screenings capture ratio of 79% for 5 mm screening and 94% for 2 mm screening.¹ This band screen is ideal for both concrete channel and pipeline installations.
¹UK Water Industry Research in National Screen Evaluation Facility Inlet Screen Evaluation Comparative Report (1999—2015).

Features

The Haigh Engineering Company’s ACE Band Screen features include:
- High screenings capture ratio
- Standard screen perforation options of 2 mm, 3 mm and 5 mm
- Low headloss — 160 mm at 150 L/s
- Stainless steel construction
- Polypropylene 30% glass filled UV stabilised black screen panels
- Configurable screen plates
- Efficient deluge cleaning system with integrated self-adjusting scraper mechanism
- Flexible installation and easy in-situ maintenance.
Brochure Contact Us

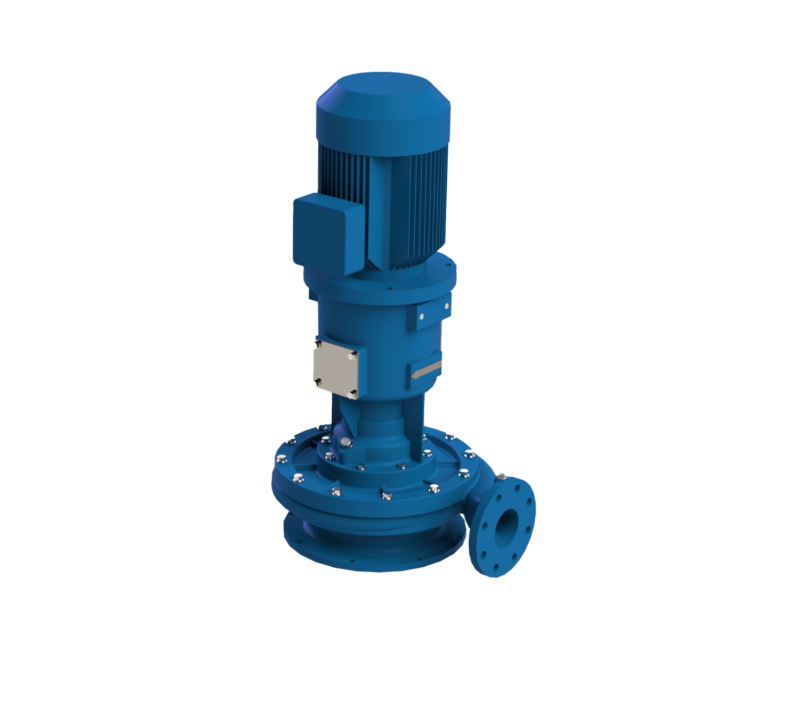

Macipump/Macerator Pump
The Haigh Engineering Company’s Macipumps have been designed to disintegrate sewage waste within a liquid medium. Process solids, together with wash water, enter a stationary cutter ring within which a tipped impeller with radial slots rotates. The combined action of the cutter ring and impeller shred the solids putting them in suspension for further processing.
Features

The Macipump mechanism shears the solids as they flow through the holes in the shearplate to a controlled particle size. Features include:
- Highly effective proven cutting action gives controlled particle size
- Strong agitation, provides homogeneous solids in suspension
- Cutters can be changed within minutes with perfect alignment
- No special tools required
- Enables flexibility in location of liquid separation and compaction phase.
Brochure Contact Us

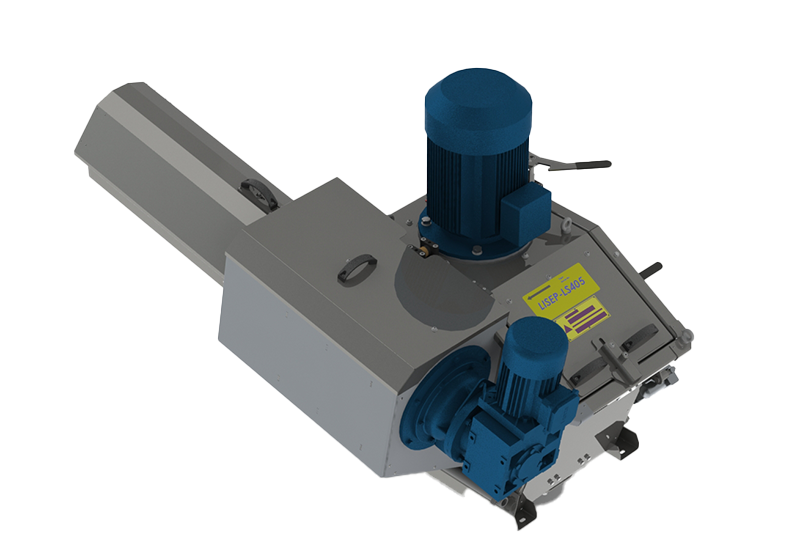

Lisep Liquid Separator and Lipactor Screenings Compactor
The Haigh Engineering Company’s high performance and reliable Lisep Liquid Separator and Lipactor Screenings Compactor produces washed, clean and compacted screenings, with maximum organics returned to the flow to improve downstream processes. The superior volume reduction the Lisep Liquid Separator and Lipactor Screenings Compactor produces results in reduced site traffic and skip transportation.

Brochure Contact Us

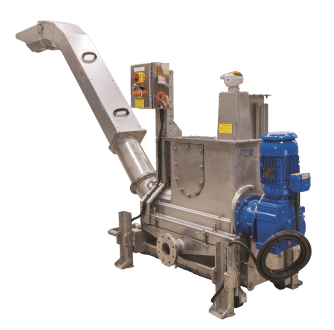

ACE Pactor
The Haigh Engineering Company’s ACE Pactor has been designed to process screenings from any inlet screen and can handle up to 8 L/s of launder wash water. Control is via ultrasonic level transducer ensuring that the ACE Pactor only runs when there is adequate screening material present resulting in lower maintenance and whole life costs.

The ACE Pactor is a simple, economical solution for compacting screenings and creating clean, dry, low volume screenings product.
Features

Features include:
- Compliant with WIMES 6.03
- Large drainage deck
- Up to 8 L/s of launder wash water
- Zero wash water screw compactor
- Heavy duty auger with Hardox flights
- Heavy duty bearing assembly
- Hard wearing brush assembly
- Hardox shearing plate
- Robust stainless steel fabrication
- Low whole life costs
- All maintenance can be carried out in situ
- Minimal onsite requirements.
Brochure Contact Us

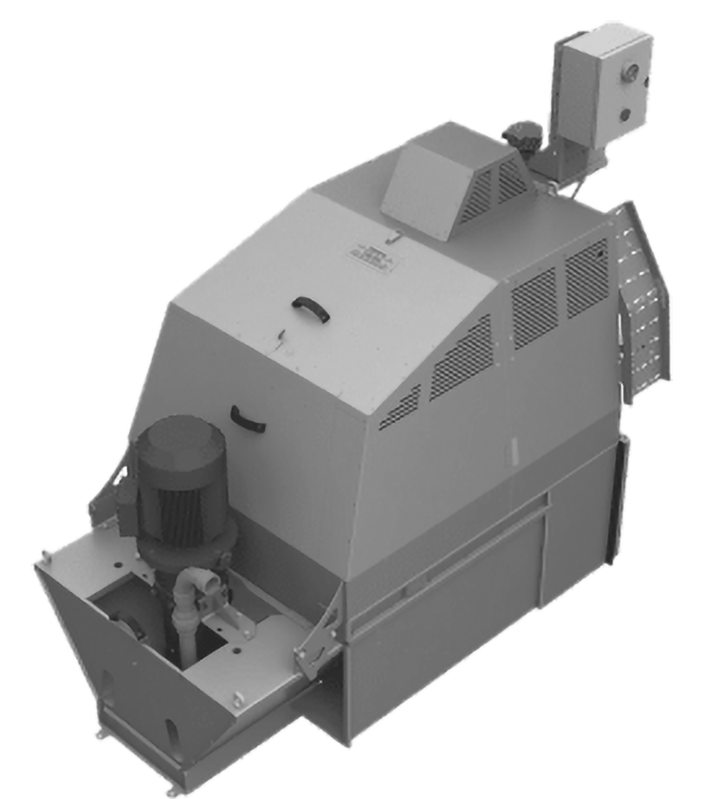

Ace Screener
The Haigh Engineering Company’s ACE Screeners are specifically designed for use in wastewater and sewage treatment plants. With a powerful processing capacity, and control and configuration options, these screeners have the ability to manage the increased loads caused by storm flushes.
The Haigh Engineering Company’s ACE Screeners are easy and flexible to install, can be used in almost any situation and can be retrofitted into existing structures, new builds or as pipeline sections.

Features

Features of the ACE Screener include:
- Inlet flows from 0—100 L/s
- Low headloss — less than 100 mm
- Zero wash water — delivers whole life water cost savings
- High screenings capture by the 6 mm perforated screen plate — SCR 64% highest in its class ¹
- Original screenings volume reduced by 94% ¹
- Standard screen perforation options of 2 mm, 3 mm and 6 mm
- Powerful ACE pump
- Lisep and lipactor combination — caters for increased screenings loads
- Advanced geared drives
- Hydrolytic flexibility — caters for higher instantaneous flows with higher screenings volumes
- Larger hopper for increased screenings loading
- Robust construction
- Easy, flexible installation — can be retrofitted
- Easy maintenance.
¹UK Water Industry Research in National Screen Evaluation Facility Inlet Screen Evaluation Comparative Report (1999—2015).
Brochure Contact Us

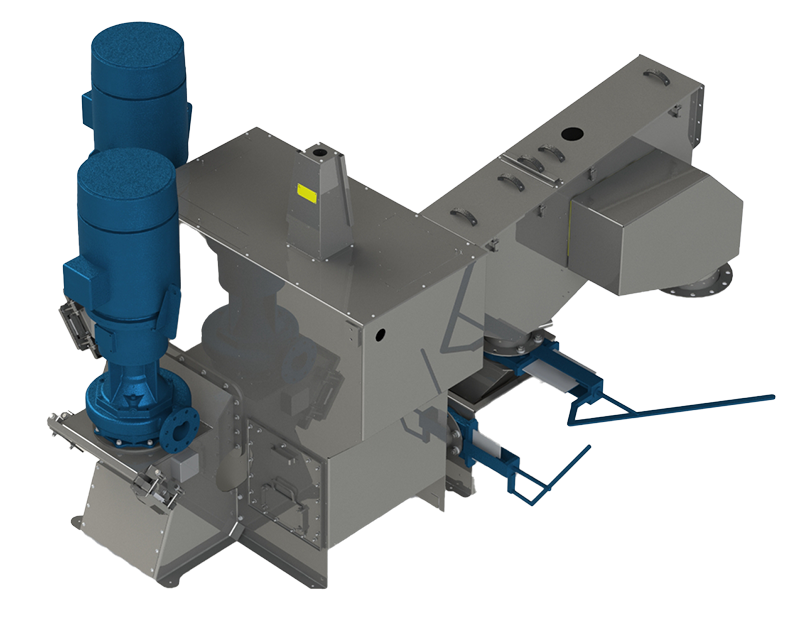

Ace Inlet Package
The Haigh Engineering Company’s ACE Packages™ process screenings from raw sewage screens efficiently and effectively. The process takes raw screenings from the screen launder flow, washes and separates the faecal matter and compacts the remaining screenings as a clean dry product ready for disposal.
The flexible ACE Packages™ can be used in conjunction with fine or coarse screens. The modular design allows engineers to integrate the package into any site layout. This means the disposal point or skip can be in the most convenient location for removal, and the overall plant footprint minimised.

Features

ACE Packages™ reduce the volume of wet screenings by up to 95%. The substantial reduction in the volume of screenings produced requires fewer skip movements and lowers whole life costs. Other features include:
- Designed as a dual module system, comprising a washing stage and a liquid separator/compaction stage
- Compatible with any screens
- Flexibility built-in as standard
- High performance washing and dewatering
- Compacted screenings can be as high as 40% dry solids
- Improved downstream process performance
- Outputs clean, odour free
- Ease of maintenance and access.
